NCA-1510B

BIOS-Update für NCA-1510B aka scope7-1510-Fiber

info

For the NCA-1510B, two update processes must be performed: a BIOS update and an ME update.

danger

Please note that downloading and installing our BIOS upgrade packages is done at your own risk. An improperly executed update can lead to malfunctions or, in the worst case, cause irreparable damage to your system. Before installation, make sure that the upgrade package matches your device model and hardware configuration exactly. Do not interrupt the update process under any circumstances—especially not by restarting the system, cutting power, or removing storage media. We strongly recommend performing a full data backup prior to the BIOS upgrade. We accept no liability for any potential damage, data loss, or system failures. If you are unsure or have any questions, please contact our technical support team beforehand.

Preparation

Prepare a Bootable USB Stick

You will need a USB stick with at least 1 GB of storage.
Format the stick using the FAT32 file system.

Next, extract the ZIP archive for the NCA-1510B provided by Landitec directly onto the USB stick.

Extracting with Windows

1. Right-click on the ZIP archive
2. Select Extract All from the context menu
3. Click Browse to choose your USB stick as the destination
4. Start the extraction by clicking Extract

Booting from the USB Stick

1. Insert the USB stick into the NCA-1510B
2. Now connect to the NCA-1510B (e.g. RJ45, mini-USB)
3. Start a serial connection with a terminal program such as Putty or Minicom

Tip

Configure your terminal program so that it uses the following settings: 115200, 8N1.

2. Power on the NCA-1510B
3. Immediately press DEL to enter the BIOS setup

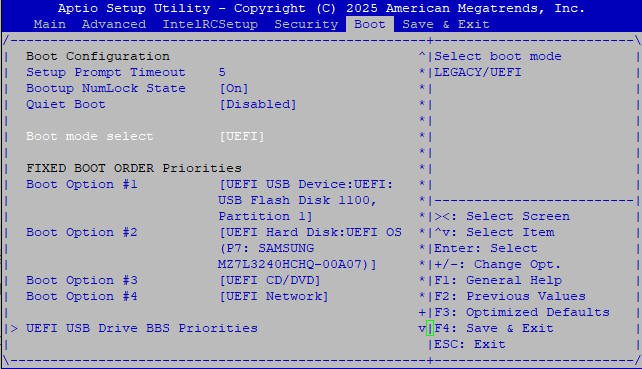

4. Change the bootmode to UEFI

5. In the BIOS, go to the last tab and look for Boot Override
6. Select your USB stick from the list to boot from it

The system should now boot from the USB stick.

Please wait until the boot process has fully completed.

danger

Please note that downloading and installing our BIOS upgrade packages is done at your own risk. An improperly executed update can lead to malfunctions or, in the worst case, cause irreparable damage to your system. Before installation, make sure that the upgrade package matches your device model and hardware configuration exactly. Do not interrupt the update process under any circumstances—especially not by restarting the system, cutting power, or removing storage media. We strongly recommend performing a full data backup prior to the BIOS upgrade. We accept no liability for any potential damage, data loss, or system failures. If you are unsure or have any questions, please contact our technical support team beforehand.

Preparation

Prepare a Bootable USB Stick

You will need a USB stick with at least 1 GB of storage.
Format the stick using the FAT32 file system.

Next, extract the ZIP archive for the NCA-1510B provided by Landitec directly onto the USB stick.

Extracting with Windows

1. Right-click on the ZIP archive
2. Select Extract All from the context menu
3. Click Browse to choose your USB stick as the destination
4. Start the extraction by clicking Extract

Booting from the USB Stick

1. Insert the USB stick into the NCA-1510B
2. Now connect to the NCA-1510B (e.g. RJ45, mini-USB)
3. Start a serial connection with a terminal program such as Putty or Minicom

Tip

Configure your terminal program so that it uses the following settings: 115200, 8N1.

2. Power on the NCA-1510B
3. Immediately press DEL to enter the BIOS setup
4. In the BIOS, go to the last tab and look for Boot Override
5. Select your USB stick from the list to boot from it

The system should now boot from the USB stick.

Please wait until the boot process has fully completed.

Updating / Flash

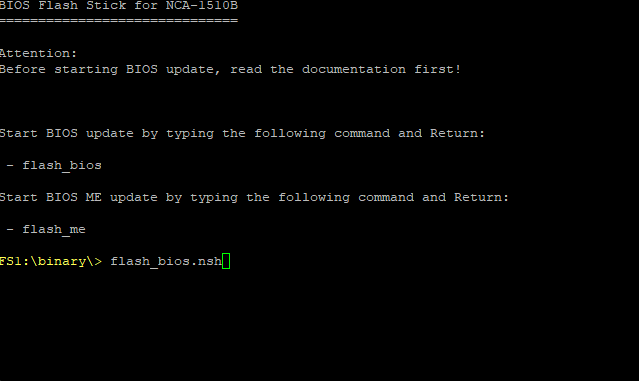

1. At the console prompt, type flash_bios and press ENTER
2. The flashing process will begin

Once the flas process is complete, you should see the screen above.

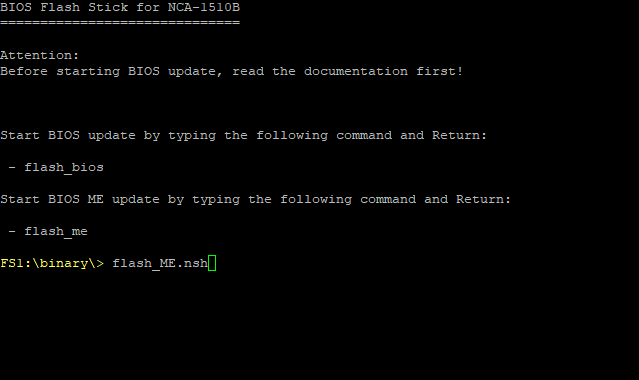

1. At the console prompt, type flash_me and press ENTER
2. The flashing process will begin

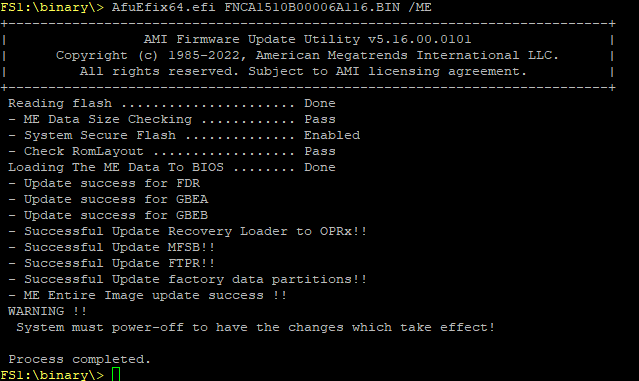

Once the flas process is complete, you should see the screen above.

3. Power off the device using the power button
4. Wait 10 seconds, then power the device back on
5. Immediately press DEL to enter the BIOS setup

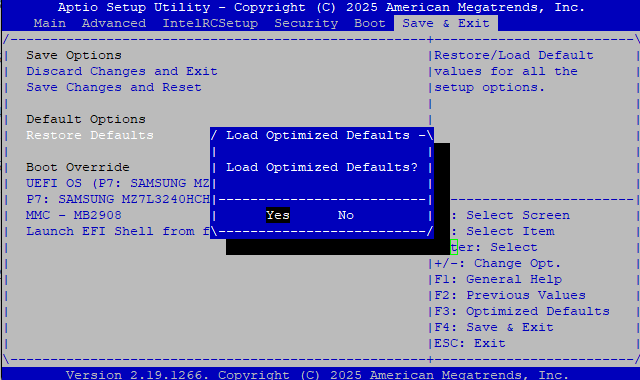

Restore BIOS Defaults

load the defaults in BIOS under Save and Exit.

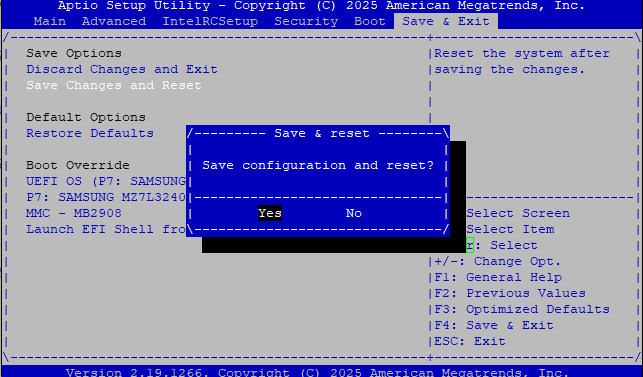

Save the confgurations and exit.
