BIOS update for PUZZLE-5030-R10-LDT aka scope7-5030

info

For the PUZZLE-5030-R10-LDT, three update processes must be performed: a BIOS update an ME update and a EC update.

danger

Please note that downloading and installing our BIOS upgrade packages is done at your own risk. An improperly executed update can lead to malfunctions or, in the worst case, cause irreparable damage to your system. Before installation, make sure that the upgrade package matches your device model and hardware configuration exactly. Do not interrupt the update process under any circumstances—especially not by restarting the system, cutting power, or removing storage media. We strongly recommend performing a full data backup prior to the BIOS upgrade. We accept no liability for any potential damage, data loss, or system failures. If you are unsure or have any questions, please contact our technical support team beforehand.

Preparation​

Prepare a Bootable USB Stick​

You will need a USB stick with at least 1 GB of storage.
Format the stick using the FAT32 file system.

Next, extract the ZIP archive for the PUZZLE-5030-R10-LDT provided by Landitec directly onto the USB stick.

Extracting with Windows​

  1. Right-click on the ZIP archive
  2. Select Extract All from the context menu
  3. Click Browse to choose your USB stick as the destination
  4. Start the extraction by clicking Extract

Booting from the USB Stick​

  1. Insert the USB stick into the PUZZLE-5030-R10-LDT
  2. Now connect to the PUZZLE-5030-R10-LDT (e.g. RJ45, mini-USB)
  3. Start a serial connection with a terminal program such as Putty or Minicom
Tip

Configure your terminal program so that it uses the following settings: 115200, 8N1.

  1. Power on the PUZZLE-5030-R10-LDT
  2. Immediately press DEL to enter the BIOS setup
  3. In the BIOS, go to the last tab and look for Boot Override
  4. Select your USB stick from the list to boot from it

The system should now boot from the USB stick.

Please wait until the boot process has fully completed.

Updating / Flash​

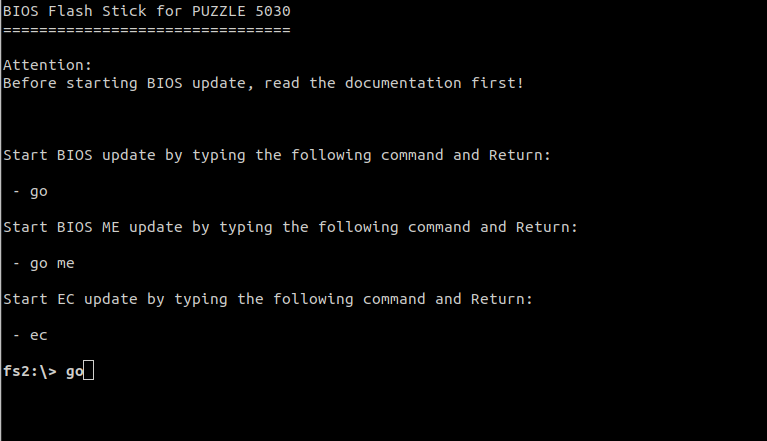

BIOS Start Screen

Once the boot process is complete, you should see the screen above.

Step 1: Updating BIOS (flash)​

  1. At the console prompt, type go and press ENTER
  2. The flashing process will begin

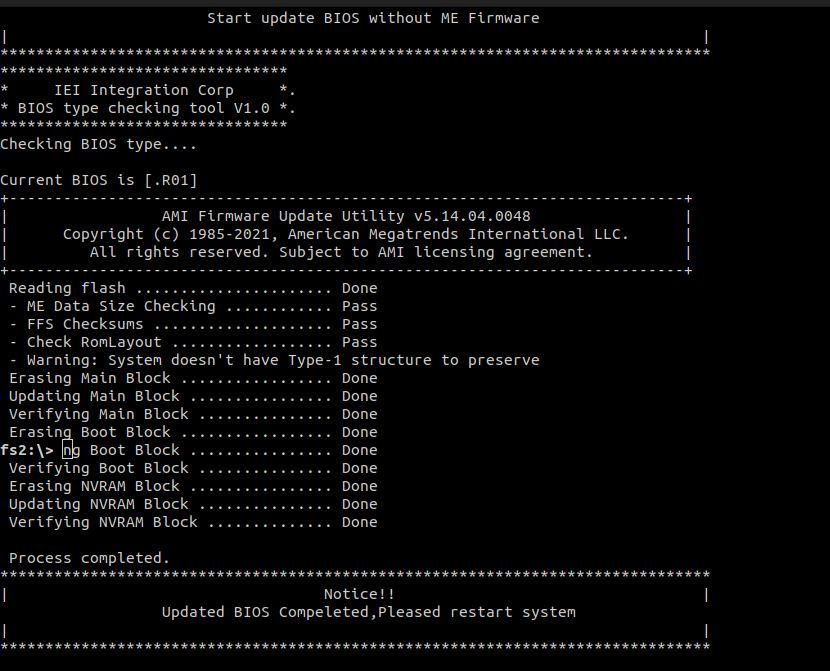

BIOS Flashing Process

Once the process is finished, the output should look like the screenshot above.

Schritt 2: Updating ME (flash)​

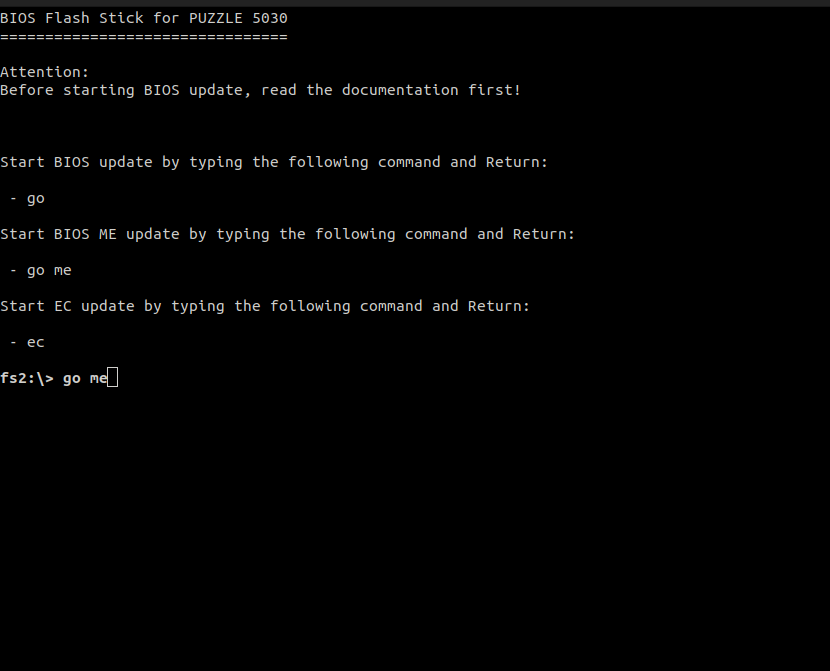

ME Flashing Process

  1. At the console prompt, type go me and press ENTER
  2. The flashing process will begin

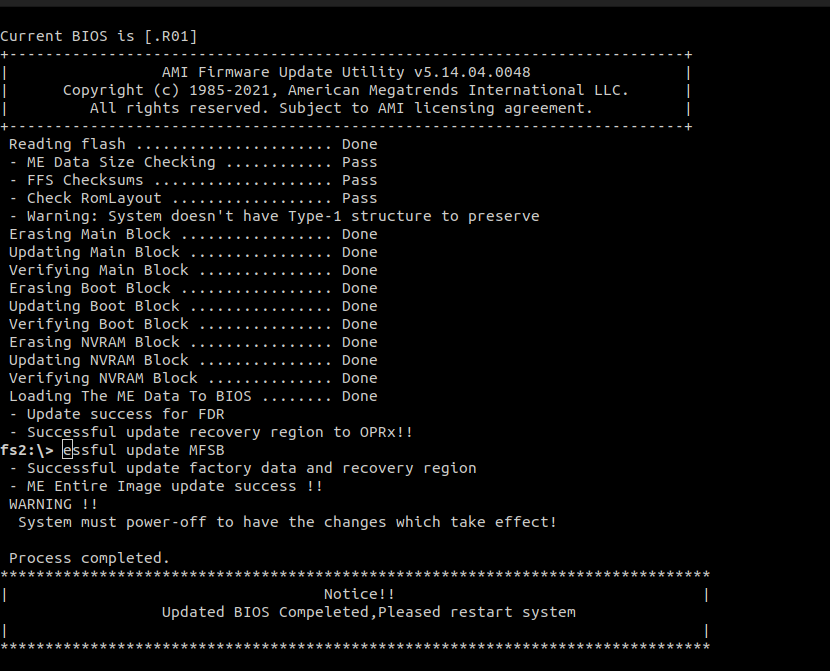

ME Flashing Process

Once the process is finished, the output should look like the screenshot above.

Schritt 3: Updating EC (flash)​

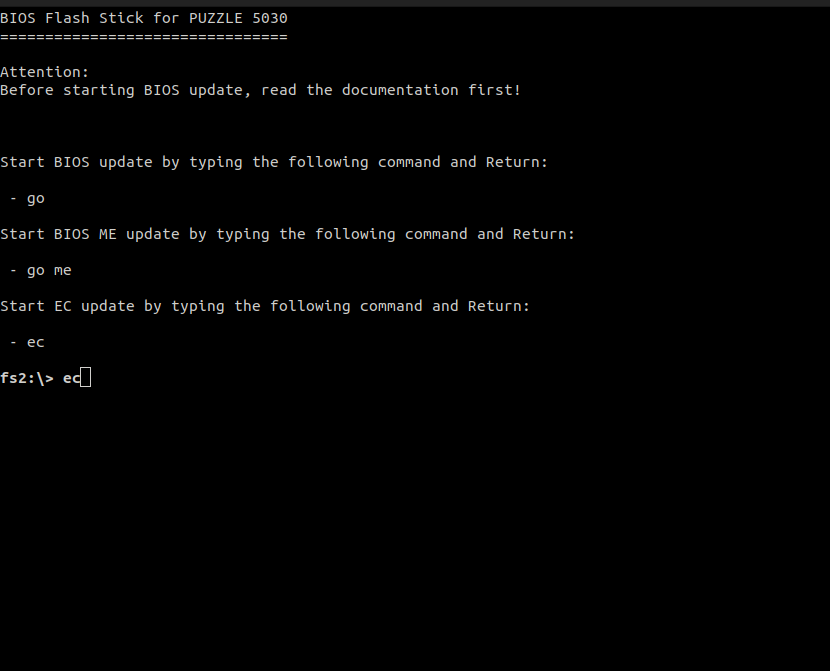

EC Flashing Process

  1. At the console prompt, type ec and press ENTER
  2. The flashing process will begin

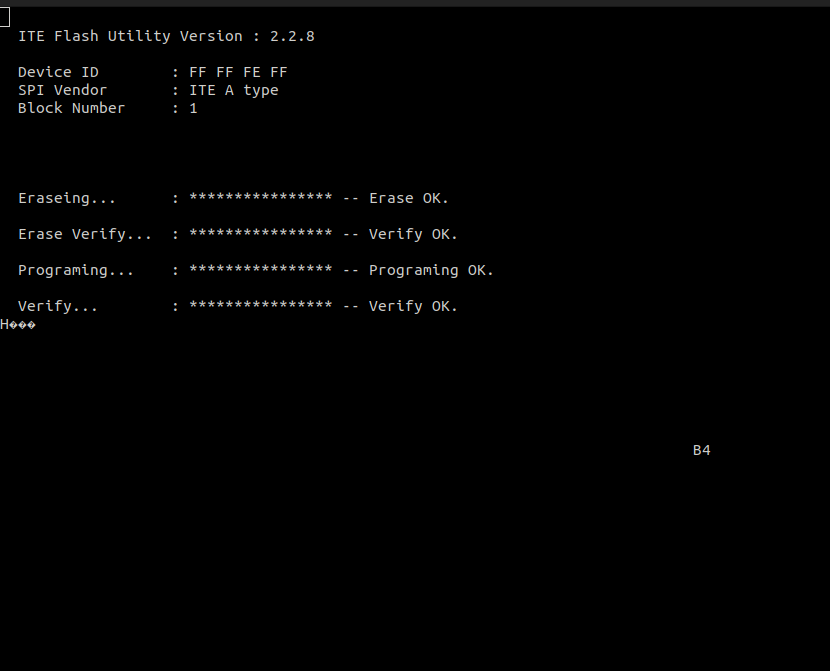

EC Flashing Process

Once the process is finished, the output should look like the screenshot above.

  1. Power off the device again and remove the USB stick
  2. Wait 30 seconds, then power the device back on

Restore BIOS Defaults​

load the defaults in BIOS under Save and Exit.

BIOS Flashing Process

Save the confgurations and exit.

BIOS Flashing Process

✅ The BIOS update process for PUZZLE-5030-R10-LDT is now complete!
